1. Introduction

Thank you for your interest in the Zoopla Property Group (ZPG) Real-time Listings Service.

To achieve this, data about available properties needs to be transferred from estate agents' software systems to ZPG. Traditionally the data transfer involves exporting large volumes of data from a database, providing a comprehensive picture of the estate agent's properties at that time. This method has the benefit of being very easy to implement but it is also very slow (due to the amount of data involved) and inefficient (most of that data has not changed since the previous export). These limitations mean that it is usually only performed once a day, overnight.

The level of service that users and estate agents now expect means that the daily bulk transfer of data is no longer suitable; the ZPG Real-time Listings Service is its replacement. It allows estate agents to make changes on their system and have those changes reflected on ZPG's websites within minutes. It achieves this by reducing the amount of data that needs to be transferred: only information about listings which have actually changed needs to be transmitted (i.e. updates are incremental).

What follows is the technical specification of the ZPG Real-time Listings Service so that anyone who wishes to integrate it with their systems may do so.

2. Overview

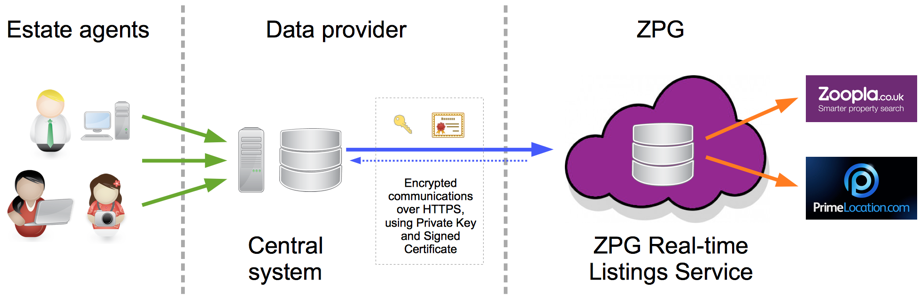

The ZPG Real-time Listings Service is designed to interact with a central data provider. Estate agents manage their properties using either a cloud-based property management solution or locally installed software which logs changes to a central data system. As changes are registered on this central system it sends messages to the ZPG Real-time Listings Service, in order to update ZPG's version of that data, which is displayed on its websites.

2.1 Simple technical overview

The ZPG Real-time Listings Service uses a fairly conventional web service design. Clients communicate with the service using standard HTTP over a secure connection (HTTPS). Each method (action) that the service provides has its own dedicated URL. The data required for the method is sent in a JSON formatted message.

The service runs in two environments: sandbox and live. The sandbox environment is used for testing your system's messaging interactions; whilst the live environment is for data you intend to be published to our websites. Initially we will provide you with access to the sandbox environment and once you are happy with your implementation you will be granted access to the live environment.

There are two principal entities which are tracked: branches and listings. A branch can have many listings associated with it but a listing can only belong to one branch. Whenever a change to a branch or listing is registered by your system, its full details should be sent to us. We will then replace our record entirely with your new version.

The media content for a listing (e.g.: images; brochures) is not transferred directly via the service. Instead, the content should be hosted on a web server and associated URLs included in a listing/update message. We will then download that content from your web server.

2.2 Simple workflow

For a more detailed description of this workflow please see Workflow overview.

3. Security and authentication

3.1 Example: creating keys and certificate signing request with OpenSSL on Linux

How you generate a public-private key-pair and associated certificate signing request will be dependent on your particular software platform. For reference, this is how you might do it on Linux using openssl:

1. Create the public-private key-pair.

openssl genrsa -out private.pem 2048

This generates a key-pair using the RSA algorithm with keys that are 2048 bits long, which is then output to the file private.pem. Note that this file includes everything about the generated key-pair and the public key can be produced from the information it contains. Reminder: private.pem should never leave your corporate network.

We suggest that when you create your key-pair you do not specify an accompanying password. Otherwise you'll have to provide that password (to decrypt the file) every time your system is restarted. The lack of a password will not affect the security of the connection itself. The example given here does not set a password.

If you are interested, you can look at the contents of private.pem:

openssl rsa -in private.pem -text

2. Create a certificate signing request.

openssl req -new -sha256 -key private.pem -out public.csr

The certificate signing request is output to file public.csr and is the file you would submit to our certificate signing request submission page.

If you are interested, you can look at the contents of public.csr:

openssl req -in public.csr -text

3.2 Example: testing authentication using Curl on Linux

How you configure your system to use the private key and signed certificate to establish an HTTPS connection will be dependent on your particular software platform. Consequently our ability to advise you on how to troubleshoot authentication issues is limited. However, if you use Linux you can test that the private key and signed certificate work together correctly by:

echo '{"branch_reference":"test"}' | curl --key /path/to/private.pem --cert /path/to/certificate.crt --data @- --header "Content-type: application/json; profile=http://realtime-listings.webservices.zpg.co.uk/docs/v2.0/schemas/listing/list.json" https://realtime-listings-api.webservices.zpg.co.uk/sandbox/v2/listing/list

which should receive the following response:

{
  "status": "OK",
  "listings": [],
  "branch_reference": "test"
}

You can test send any of the message examples in a similar way, although you may need to include additional headers (see 4. Messaging).

3.3 Certificate revocation

3.4 Supported TLS versions

The ZPG Real-time Listings Service only accepts secure connections using the TLS 1.2 protocol.

Since security is so important it is worth explaining why this is the case. As previously discussed, security is composed of two parts: identity and privacy. Whilst the data being sent to the Real-time Listings Service is not particularly sensitive (privacy), being assured that the person sending the data is actually who they claim to be (identity) is paramount: no-one should be able to read/change data except its legitimate owner.

(ZPG also expects to launch other services in future. Those services may be dealing with data that is sensitive and should therefore be transmitted in a suitable manner. The Real-time Listings Service is the first of these services, and so we have taken the opportunity to establish best practice standards at the outset, so that partners are familiarised with our security requirements, leading to fewer suprises or problems in future.)

There are a number of industry-standard secure communication protocols - many of which have become obsolete due to flaws in their design :

• SSL 1.0, 2.0, 3.0 are all insecure. There are known exploits and no-one should be using them any more.
• TLS 1.0 is insecure. There are known exploits and no-one should be using it any more.
• TLS 1.1 is believed to be secure but is not the latest version.
• TLS 1.2 is believed to be secure and is the latest version, with support for additional, stronger cipher algorithms than TLS 1.1.

After reviewing library support for TLS across programming languages and operating systems, we determined that, in the vast majority of cases, if TLS 1.1 was supported then TLS 1.2 was too. We therefore feel comfortable that by restricting access to TLS 1.2 we are following best practice guidelines, should not cause undue disruption, and is in the interest of all users of our services.

4. Messaging

(Note that in JSON nomenclature an object's attributes are called "properties", which is somewhat unfortunate given the industry we operate in. In order to remove any possibility of ambiguity, this documentation refers to "attributes" instead and the only use of the word "properties" in our schemas is as required by the JSON standard, not as the name of a data attribute.)

The JSON message would then be sent to the method's URL endpoint using an HTTP POST. Having received your message the service will respond with a standard HTTP response status code and provide additional information in the response content, formatted in JSON.

4.1 Method endpoints

The ZPG Real-time Listings Service operates in two environments:

• sandbox, for testing:https://realtime-listings-api.webservices.zpg.co.uk/sandbox/v2/

• live, for data destined for our websites:https://realtime-listings-api.webservices.zpg.co.uk/live/v2/

Having chosen the correct environment, you then append the name of the method you wish to call. For example:

• https://realtime-listings-api.webservices.zpg.co.uk/sandbox/v2/branch/update
• https://realtime-listings-api.webservices.zpg.co.uk/sandbox/v2/listing/update
• https://realtime-listings-api.webservices.zpg.co.uk/sandbox/v2/listing/delete
• https://realtime-listings-api.webservices.zpg.co.uk/sandbox/v2/listing/list

You would then use an HTTP POST to send your JSON message to that endpoint, along with the appropriate HTTP headers.

Reminder: your software will need to have been configured so that it can access both the signed certificate and private key, discussed in 3. Security and authentication, when you contact either of these environments. This is so that the secure HTTPS connection can be established.

Please note that the endpoints reference the major component of the API version number you wish to use, whilst the JSON schemas also include minor version components, which must be specified in the Content-Type profile.

(You will initially be given access to the sandbox environment to test your system integration. Data sent here will not affect ZPG's websites. When you are happy that your system integration is complete, you will need to contact us to gain access to the live environment. At that time we will then discuss the best way to perform an initial upload of all your branch and listing data, as well as how to migrate any existing clients who currently use an FTP feed.)

Note that some schema versions may not be available in the live environment; for example, during the development and testing of new versions, or because an old version has been retired. Please refer to our current message schemas to see which environments support the API version documented here.

4.2 HTTP request

The JSON message should be sent to the URL endpoint for the method you wish to use, via a POST.

4.3 HTTP headers

4.3.1 Content-Type

The Content-Type should be set to application/json, along with a profile definition, which is the URL of the specific version of the message schema you are conforming to. e.g.:

Content-Type: application/json; profile=https://realtime-listings.webservices.zpg.co.uk/docs/v2.3/schemas/listing/update.json

4.3.2 ZPG-Listing-ETag (only required for listing/update)

ZPG-Listing-ETag is the mechanism for ensuring that the listings on your system and ours are synchronised. Whenever you send us a listing/update message we will replace the data we have with the new version. At a later date you may wish to check whether the data we have is indeed the same as yours. Rather than sending the entire message back to you - which would then require you to compare all the individual attributes to find differences - we instead ask that you provide us with metadata that will allow your system to quickly determine whether the listing data we have is synchronised with yours. This metadata is sent via the ZPG-Listing-ETag header with each listing/update message, which can later be retrieved via the listing/list method.

The ZPG-Listing-ETag value is a string that you define (up to 255 characters in length) that indicates the overall state of the listing, as represented by the listing/update message. Its value should:

• remain constant for a given listing/update message
• change when data within the listing/update message is modified
• be unlikely to be duplicated in future

i.e. if something changes on your system that would change the listing/update message you would send to us, then the accompanying ZPG-Listing-ETag should change to reflect that.

We recommend using a checksum of the canonicalised listing/update message. Depending on how your system tracks changes to listing data (and how it is sent to us) an auto-incrementing revision_id, or a last-modified date may also be suitable.

The ZPG-Listing-ETag you provide will be returned by the listing/list method. By comparing its value with the one your system would produce now, you can determine whether it is necessary to refresh the listing on our system. Please see 10.3 Periodically check synchronisation for additional information about this process.

5. Methods

The service supports the following methods:

• branch/update: create or update information about a branch (e.g.: their name; address).
• listing/update: create or update information about a listing, associated with a branch (e.g.: description; price).
• listing/delete: delete a listing from a branch's inventory.
• listing/list: retrieve a branch's inventory list.

Please see the current message schemas and example messages for each method.

5.2 listing/update method

This method allows you to describe a listing. It is used for both creation and update purposes and, in either case, the listing should be described in its entirety.

There are a small number of mandatory attributes:

1. branch_reference
2. category
3. detailed_description
4. life_cycle_status
5. listing_reference
6. location
7. pricing
8. property_type

The remaining attributes are all optional according to our schema and specification, however some are strongly advised, where they relate to material information required as published in guidance by the National Trading Standards Estate and Letting Agency Team (NTSELAT). All the additional information you can provide improves our ability to successfully match the listing to a user's search. If you do not have any data for a particular attribute, then do not include it in your message - do not default it. This will make it less likely for the message to fail validation rules which use the attribute and you won't accidentally introduce meaning (and consequence) where there was none before.

There are three attributes which define how we will interpret the listings's data:

1. location:country_code: "Where is it?" (This can be further reduced to: "Is this a UK or overseas listing?")
2. category: "Is this listing for a property which is residential (people will live in it) or commercial (a place of business)?"
3. pricing:transaction_type: "What kind of financial transaction will take place: sale or rent?"

Attributes which are nonsensical when considered in the above context will be ignored (for example: council_tax_band will be ignored if the location:country_code indicates an overseas (non-UK) listing).

5.1 branch/update method (optional)

This method allows you to describe a branch, to which listings are then associated. The address and other contact details allow us to identify the equivalent branch on our system and map your branch_reference to ours.

Note that this method is optional. If you do not use it then the branch information will need to be transferred to ZPG in some other way (typically via an emailed CSV spreadsheet), although this will likely delay the integration of branches with our system.

5.3 listing/delete method

This method allows you to remove a listing from a branch's inventory list.

5.4 listing/list method

Because of the incremental nature of the service it is possible for the data that ZPG has to drift relative to yours (because of network problems or uncaught errors, for example). It is recommended that you periodically check the synchronisation of data between our system and yours. The listing/list method allows you retrieve a summary of the listing inventory for a branch and their state.

The response will include the listing inventory for the branch as an array of:

Please see 10. Workflow overview for additional information about how to use this method.

6. Objects

If you include an attribute in your method call that uses an object to represent it, a valid object must be supplied. When discussing objects, a constituent attribute described as being mandatory is with reference to how to produce a valid object; it does not imply that the object, nor the attribute that uses that object, is mandatory when calling a particular method. Please refer to the method itself to see whether a particular attribute is mandatory.

area object

This describes a single area. It is a constituent of a number of other objects. This should not be confused with the areas object.

areas object

The internal/external areas of the property.

content object

A content object specifies a single piece of media content associated with the listing, such as an image or brochure. The listing/update:content attribute is an array of these content objects, which will be displayed in the order provided. Please see 9. Retrieval of media content for more information about how the content will be retrieved from the specified URLs.

coordinates object

This object describes the geographic location of a point on the Earth's surface using the latitude/longitude system. We recommend you store latitude/longitude with a precision of at least 5 decimal places, which allows for locating a point to within approximately 1 metre.

description object

The description is expressed as an array of description objects, each of which represent a paragraph or section. For additional information about how to use this object, including examples, please see section 8. Structuring of detailed descriptions.

Requirements: you must provide at least one of heading or text per object, whilst dimensions is optional (but contingent on the presence of a heading).

dimensions object

Information about the dimensions of a room.

This will be displayed as "length x width" with appropriate unit markers. Traditionally, length is greater than width, but this is not required.

epc_ratings object

The Energy Performance Certificate (EPC) provides information about the energy efficiency and environmental impact of the property.

risks object

Disaster Risks - accurate information as to any known risk of, or actual damage to the property, if a risk is present then it's attribute cannot be empty or null. at least 1 risk mush be provided and cannot be null/empty

flooding_risks object

Flooding Risk - provides users with relevent information around risk of flooding at the property. if configured cannot be empty

mining_risks object

Mining Risk - prvoides infomation where a property is known to be on the coalfield or directly impacted by the effect of other mining activity. if configured cannot be empty

google_street_view object

Google Street View provides users with the ability to virtually explore outdoor areas. This is becoming increasingly valuable to users, who are able to, for example: plan routes to bus stops; see which services are provided by local shops.

ground_rent object

The following fields are optional

council_tax_band object

council_tax_band represents one of a set of submittable values. Either the band itself as a simple string, or one of two objects representing that the property is exempt, or that the band is unknown at this point in time. The latter is most likely used for newbuild properties where bands have not yet been decided. Either exemption or unknown status must also provide a reason as part of the submission.

Please note that Council Tax (UK) is considered material information and must be included in the listing. In very limited circumstances, listings may be exempt from council tax. If that is the case, a reason for the exemption must be provided within the listing description as per below.

Either a simple string such as: "A" or an object containing one of the following two keys: "B", "C", "D", "E", "F", "G", "H", "I"

domestic_rates object

domestic_rates represents one of a set of submittable values. Either a number value Northern Ireland domestic rates annual payable value. Either the rate itself as a number (taken as per annum), or one of two objects representing that the property is exempt from paying rates, or that the rate is unknown at this point in time. Either exemption or unknown status must also provide a reason as part of the submission.

Either a simple non-zero number such as: "100" or an object containing one of the following two keys:

Please note that Domestic Rates (NI) is considered material information and must be included in the listing. In very limited circumstances, listings may be exempt from council tax. If that is the case, a reason for the exemption must be provided within the listing description.

local_authority object

Charges issuable by a local authority. One of the following keys must be specified if the local_authority key is submitted.

location object

Providing an accurate address and location for the property is incredibly important because a large number of existing and future features on our websites depend on it. For example: which council is responsible for the maintaining and taxing the local area; or average travel times between the property and other locations of interest to the user.

Note that there is a hierarchical order to the address attributes, so in order of increasing size:

• property_number_or_name
• street_name
• locality
• town_or_city
• county
• country_code

If your software does not currently support the separation of the property_number_or_name from street_name (i.e. they are stored as a single string value; for example: "29 Acacia Road"), then please supply that string via street_name.

minimum_contract_length object

The rental_term attribute can be specified with a minimum_contract_length object or, if the contract length is not currently known, by an enum that roughly indicates its likely duration (e.g. "short_term").

min_max_area object

The min_max_area object defines an area range. Where only one is specified, we will regard them both as having the same value - i.e. a fixed area.

restriction object

supporting information pertaining to any known statutory/contractual restrictions or obligations that relate, restrict or require the use of land, restrictions on resale and/or require it to us used, maintained or preserved is a certain manner. If provided cannot be empty or null

rights_and_easements object

supporting information pertaining to any known (or in progress) easements or rights that relate to the use of land, resale and/or require it to us used, maintained or preserved is a certain manner. If provided cannot be empty or null ained or preserved is a certain manner. If provided cannot be empty or null

paf_address object

Note that Royal Mail's UDPRN (see location:paf_udprn) is generally preferred to paf_address because it is more stable with respect to changes in property utilisation (e.g. commercial becoming residential).

price_per_unit_area object

This object describes a price which is provided as a function of floor area.

pricing object

The pricing object's structure is determined by whether its component attribute transaction_type indicates that the listing is for sale or rent. Please note that we do not currently support multiple pricing, nor multiple transaction_types, for a single listing. If you do have multiple pricing models, perhaps due to a range of incentive schemes being available, then you should supply the non-subsidised price in the pricing object and indicate available incentive plans via listing/update:buyer_incentives.

Because pricing is so important there are a number of schema-enforced dependencies for some of the pricing object's attributes. In particular:

• When transaction_type = "rent", rent_frequency must be specified.

• When providing a price_per_unit_area you must also provide an areas attribute with an internal area.

• price_qualifier = "non_quoting" is only valid for location:country_code = "gb" and category = "commercial".

• When stating price_qualifier = "non_quoting" then you must not provide pricing/price nor pricing/price_per_unit_area.

• You must however, still provide an areas object that specifies the minimum internal area.
• Note that you do not have to supply both price and price_per_unit_area, although that is allowed. Do not calculate one price attribute from the other.
• price_qualifier = "coming_soon" is only valid for new homes listings, for all other cases it will not be parsed

service_charge object

This object describes any ongoing service charges which are applicable. and charge amount must be suplied and you may optionally also supplement per_unit_area_units or frequency (or both if relevant)

shared_ownership object

Use this object to indicate whether this leasehold purchase is shared ownership. If none of the sub-values are known then submit the key with an empty object, otherwise include the keys/values as appropriate.

The following fields are not mandatory, but if one is included then the other must be as well.

tenure object

commonhold

leasehold

For leasehold properties, information about the leasehold expiry and any shared ownership details should be provided if applicable.

For properties where a share of ownership is being purchased, the shared_ownership object should be provided, as below:

The expiry of leasehold tenure can be expressed as the actual expiry date or the number of years remaining on the lease.

or

share_of_freehold

For some share_of_freehold properties there may be an associated lease component. In such cases information about the lease expiry can be provided to supplement this tenure

The expiry of any lease component of a share_of_freehold tenure (if relevant) can optionally be expressed as either the actual expiry date or the number of years remaining on the lease. if provided only one of the following is permitted and not both at once

or

tenant_eligibility object

This allows you to specify the eligibility of various classifications of applicant for a tenancy. Note that you do not have to specify eligibility for all classifications.

Note: as of April 2019, the dss attribute in this object is ignored. Please see"Zoopla to end 'No DSS' wording in rental adverts" for more details.

7. Responses

After processing your message we will send you a response that includes a standard HTTP status code and a JSON object in the content body that provides more detailed feedback.

7.1 Success

A response with a 200 OK HTTP status code indicates a successfully processed message. For convenience the JSON response object includes the primary identifiers provided in the original message. The methods respond as follows:

7.1.1 branch/update

{
  "status": "OK",
  "branch_reference": "<message's branch_reference>",
  "new_branch": true
}

If this was the first time that we have received a message about branch_reference then new_branch will be true, otherwise false.

7.1.2 listing/update

{
  "status": "OK",
  "listing_reference": "<message's listing_reference>",
  "listing_etag": "<message's ZPG-Listing-ETag header>",
  "url": "<URL for this listing>",
  "new_listing": true
}

If this was the first time that we have received a message about listing_reference then new_listing will be true, otherwise false.

In both sandbox and live environments the response contains a url attribute:

• in the sandbox environment, this is a link to a web page where you can preview how the listing will be displayed on our websites.

• in the live environment, this is a link which, once your listing has been processed and published, will redirect to the detail page of this listing on Zoopla.

7.1.3 listing/delete

A listing/delete message will return a 200 OK if the listing_reference is no longer active on our system. If your message deleted listing_reference then you will receive:

{
  "status": "OK",
  "listing_reference": "<message's listing_reference>"
}

whereas if the listing_reference was already inactive, or previously unknown to us, then you will receive:

{
  "status": "UNKNOWN",
  "listing_reference": "<message's listing_reference>"
}

The effect is the same but you may wish to investigate these cases since this may be indicative of a synchronisation issue.

7.1.4 listing/list

listing/list allows you to retrieve listing inventory information for a branch:

{
  "status": "OK",
  "branch_reference": "<message's branch_reference>",
  "listings": [
    {
      "listing_reference": "<listing_reference 1>",
      "listing_etag": "<ZPG-Listing-ETag 1>",
      "url": "<URL for this listing>"
    },
    {
      "listing_reference": "<listing_reference 2>",
      "listing_etag": "<ZPG-Listing-ETag 2>",
      "url": "<URL for this listing>"
    }
  ]
}

The listing_etag attribute contains the value of the ZPG-Listing-ETag you provided with your last listing/update message relating to listing_reference. Using this value you can check the synchronicity of the listing's data between ZPG's system and yours.

The url attribute behaves in exactly the same way as that described for the listing/update response.

If branch_reference has no listings then it will not be treated as an error and an empty list will be returned:

{
          "status": "OK",
          "branch_reference": "<message's branch_reference>",
          "listings": []
}

7.2 Errors

If there was a problem with the message then the response will include an HTTP status code in the 4xx range. The accompanying JSON response object will include more detailed information about the error to help you diagnose and fix it.

An error response will always include the following attributes:

If there are problems parsing your message as JSON, there will also be:

If there are problems determining which schema or method should be used, there will also be:

If there are problems validating the message against its associated JSON schema, there will also be:

For example, if you were to send a correctly formatted message to the incorrect method endpoint you would receive:

{
  "error_name": "schema_method_mismatch",
  "error_advice": "The schema referenced in the Content-Type profile does not match the method endpoint where the message was sent. Please check that you are using the correct message schema and that the message is being sent to the correct endpoint.",
  "method": "/sandbox/undefined/branch/update",
  "profile": "http://realtime-listings.webservices.zpg.co.uk/docs/v2.3/schemas/listing/update.json"
}

7.2.1 Referencing of JSON attributes

The most common errors relate to problems with the JSON message itself (for example, invalid data or a missing mandatory attribute). The JSON validator will reference attributes of interest via a hierarchical path, with "#/" denoting the root level of the object:

#/category{
  "category": "residential"
}

#/location/coordinates/latitude{
  "location": {
    "coordinates": {
      "latitude": 120.659815,
      "longitude": -7.846114
    }
  }
}

Note that, in JSON, array elements are referenced using a zero-based index:

#/an_array/1{
  "an_array": [
    "element 0 => #/an_array/0",
    "element 1 => #/an_array/1",
    "..."
  ]
}

7.2.2 JSON schema validation

The JSON validator's error messages should be self-explanatory when describing problems about an individual attribute and its dependencies.

The JSON validator will attempt to validate your message against the schema by interpreting the listing's data in all possible contexts. If it is unable to find a successful match then it will return all the errors it encountered. Recall that there are three principal attributes that are used to interpret the listing's data (#/location/country_code, #/category, #/pricing/transaction_type) so, naturally, there are some schema-enforced rules related to these attributes. If one of these attributes has a problem then it may trigger multiple errors (each produced by considering the message in a different context), which may make it appear as though there are more problems than there actually are, so we recommend you investigate errors for these attributes first. For example, consider the following pricing object:

{
  "pricing": {
    "transaction_type": "rent",
    "currency_code": "GBP",
    "price": 10000
  }
}....

This produces two errors:

{
  "error_name": "json_does_not_validate",
  "error_advice": "The JSON message does not conform with the schema. Please check the 'errors' array for details.",
  "errors": [
    {
      "message": "'rent_frequency' is a required property",
      "path": "#/pricing"
    },
    {
      "message": "'rent' is not one of ['sale']",
      "path": "#/pricing/transaction_type"
    }
  ],
  "schema": "http://realtime-listings.webservices.zpg.co.uk/docs/v2.3/schemas/listing/update.json",
  "status": "FAILURE"
}

The validator has attempted to interpret the message as a rent listing and discovered that the required rent_frequency attribute is missing. Having failed to validate as a rent listing, the validator then attempted to interpret the message as a sale listing instead. That failed too because the transaction_type is incorrect for a sale listing. In order to fix this error the sender would have to decide what the correct transaction_type was and then either change the transaction_type or provide the rent_frequency .

8. Structuring of detailed descriptions

Providing a comprehensive description of the listing is very important: it is the estate agent's primary opportunity to convince the user that this property is exactly what they are looking for. Our detail page is divided into the following sections:

• Images: see 9. Retrieval of media content.
• Other media content: see 9. Retrieval of media content.
• Features: a simple bulleted list of important or interesting aspects of the property. These are specified via listing/update:feature_list.
• Detailed description: the topic for the rest of this section.

The description should provide an overview of the property and, if relevant, its constituent rooms. Presentation is also very important, from both structural and visual perspectives, as it allows the user to quickly find information about the property that they are specifically interested in. Unfortunately there is no standard as to how to structure descriptions, so our detailed_description attribute has been designed to be as flexible as possible, whilst providing a framework to encourage good practice.

The detailed_description is an array of description objects, each of which can have the following attributes:

• heading
• dimensions
• text

These attributes populate a template with this structure:

You must provide at least one of heading or text per object, whilst dimensions is optional (but contingent on the presence of a heading). The heading will be styled appropriately. By specifying a sequence of these objects, each using various combinations of header, dimensions and text, a wide variety of complex layouts can be achieved. A number of common scenarios are discussed below.

The text can include HTML. However, we only support a limited number of HTML tags in order to prevent unforeseen and undesirable interactions with our own HTML layout and styling. We currently only support:

• <br> (line break)
• <p> (paragraph)
• <strong> or <b> (highlighted)
• <em> or <i> (emphasised)
• <u> (underlined)
• <ul> and <li> (unordered list)

Note that any external links and contact details will be removed from the description text.

If your system only stores a single block of descriptive text then you would use one object with a single text attribute:

{
  "detailed_description": [
    {
      "text": "This is a single block of text."
    }
  ]
}

Because there is no information about the structure of the text when provided this way, the author may need to embed HTML tags in order to achieve the layout they desire.

Example: sections

If your descriptions are split into sections then you would use multiple objects, one per section, specifying a heading for each:

{
  "detailed_description": [
    {
      "heading": "Section one",
      "text": "The text for section one."
    },
    {
      "heading": "Section two",
      "text": "The text for section two."
    }
  ]
}

Note that sections do not necessarily have to have a heading, in which case they will appear as paragraphs. A common use-case is to have an un-headed introductory paragraph, followed by headed sections:

{
  "detailed_description": [
    {
      "text": "Introductory overview of the property."
    },
    {
      "heading": "Section one",
      "text": "The text for section one."
    },
    {
      "heading": "Section two",
      "text": "The text for section two."
    }
  ]
}

Example: sections for individual rooms

The most common (residential) use-case is an overview paragraph followed by sections that describe individual rooms. This is exactly the same as the sectioned description discussed previously but with the addition of the dimensions attribute:

{
  "detailed_description": [
    {
      "text": "Introductory overview of the property."
    },
    {
      "heading": "Room one",
      "dimensions": {
        "length": 12.2,
        "width": 10,
        "units": "metres"
      },
      "text": "Information about room one."
    },
    {
      "heading": "Room two",
      "dimensions": "10m x 8.2m",
      "text": "Information about room two."
    }
  ]
}

If you do not have a description for a room (although that's not recommended) then you can just specify a heading in order to maintain consistency of presentation:

{
  "detailed_description": [
    {
      "text": "Introductory overview of the property."
    },
    {
      "heading": "Master bedroom",
      "dimensions": {
        "length": 20.1,
        "width": 15.2,
        "units": "feet"
      },
      "text": "A large bedroom with lots of storage space and an outlook over the valley."
    },
    {
      "heading": "Bedroom",
      "dimensions": "10' x 8'"
    },
    {
      "heading": "Bedroom",
      "dimensions": "9' x 9'"
    },
    {
      "heading": "Kitchen",
      "text": "The kitchen was recently refitted."
    }
  ]
}

Note that in the above example the dimensions of the kitchen are missing. This is permissible but not good practice when discussing individual rooms.

User-Agent: Zoopla Property Group automated download

10. Workflow overview

This section describes the workflow for how the ZPG Real-time Listings Service should be used and how to ensure that the data ZPG has is synchronised with your own.

10.1 Initial upload

10.1.1 A new estate agent is added to your system

For each branch that the estate agent owns, you send a branch/update.

10.1.2 Upload listing data

For each added branch, find the set of listings that they are responsible for. For each listing, send a listing/update message.

Recall that listing/update requires that it be accompanied by a ZPG-Listing-ETag HTTP header. The value of ZPG-Listing-ETag should be an identifier on your system which allows you to accurately determine that when two such values are different, the overall state of the listing is also different. Depending on how you track changes to your data (and how it is represented in a listing/update message) an auto-incrementing revision counter, or possibly a last-modified date may be suitable. However, we would recommend using a checksum based on the listing/update message itself:

• Canonicalise the JSON listing/update message. (This is the default for many JSON software libraries but some require you explicitly perform that action, or possibly set a configuration flag to enable it.) This process ensures that the message is represented in a consistent fashion, regardless of the order in which you populated attributes within the message.
• Produce a checksum hash (e.g.: MD5; SHA-1) of the canonicalised JSON message. Store this value on your system and send it as the ZPG-Listing-ETag.

10.2 Incremental changes

Amendments are made to a listing on your system

Send a listing/update message which details the complete state of the updated listing.

10.2.1 A listing ceases to be valid

Send a listing/delete message to delete it from our system.

10.3 Periodically check synchronisation

Because of the incremental nature of the updating process, should a message be lost (e.g. due to a networking problem), then the data that ZPG has will be different to yours and will need correcting. We therefore recommend that you periodically, once a week say, check the synchronisation of data:

10.3.1 Ask about the state of a branch's listings on ZPG's system

For each branch you maintain, send a listing/list request. In the response, for each of the branch's listings, we will provide you with your listing_reference and the ZPG-Listing-ETag that we last received for that listing.

10.3.2 Add listings

If listing/list is missing a particular listing, use listing/update to create it.

10.3.3 Remove listings

If listing/list includes a listing that is no longer valid, use listing/delete to remove it.

10.3.4 Update listings

For each listing that is common to both systems, compare the value of the ZPG-Listing-ETag with that of the relevant field in your system:

• If the values are identical then the data is the same on both systems and you do not need to do anything. This should be the normal case.

• If the values are different then ZPG's data is stale and you should use listing/update to refresh it.

11. Integration

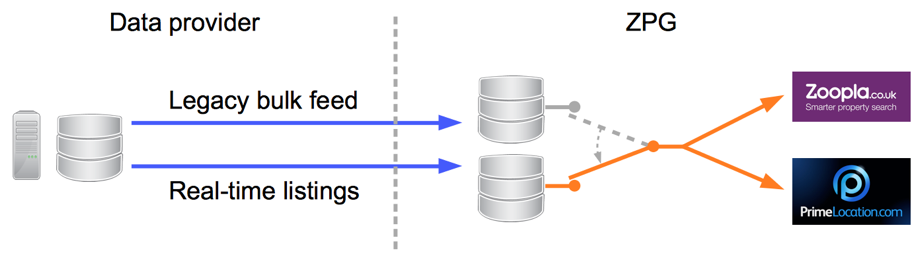

11.1 Transitioning from an existing bulk data feed

If you currently send ZPG a bulk data feed then it may be useful to understand how the transition between that feed and the ZPG Real-time Listings Service will be handled before reading about how to build your implementation.

Data feeds received by ZPG are kept separate from each other: your data never interacts with anyone else's (nor theirs with yours) and should you send us multiple feeds they will not interact with each other either. We then choose which subsets of these data feeds will be shown on our websites (on a per-branch basis).

You should therefore design your system so that you can update ZPG via your bulk data feed and the Real-time Listings Service concurrently, thus maintaining two equivalent data sets simultaneously:

Once your Real-time Listings Service integration is complete and running smoothly, ZPG can then simply switch its websites over from using one data set to the other. This mechanism preserves your data's integrity; simplifies testing; makes it easier to QA attribute coverage and equivalence between both systems; and allows for a quick transition to having real-time behaviour for all branches simultaneously - if desired. (It also provides the security of a viable rollback option in the unlikely event that a major problem occurs during the migration.)

11.2 Test environment

11.2.1 Sandbox environment and API

This is an exact copy of the live environment but is isolated from our public websites. Any test messages you send here will only affect the data you previously sent to the sandbox environment; you cannot "break" anything. There are no restrictions on the number of messages you can send or listings you can store. Indeed, as part of your final testing you should maintain a copy of all your listing data in the sandbox environment (just as you would do in the live environment) in order to demonstrate that the system is mature and suitable for sending data to our public websites in real-time.

11.2.2 Preview listing web page

You can more easily visualise a particular listing's data via our listing preview page. Please note that whilst the preview is styled in a similar fashion to our websites it is only intended for illustrative purposes. The URL for a particular listing's preview page can be found in the responses from listing/update and listing/list.

The preview page will indicate whether we will be able to download the associated image and other content URLs, and for any images we could not access an "awaiting photos" placeholder will be shown. Please see 9. Retrieval of media content for more information about how we will retrieve your content and the set of IPs our download requests will originate from.

11.3 Building your implementation

Whilst you do not have to follow this exactly, we suggest:

1. Check that your current image-hosting web servers respect If-None-Match and If-Modified-Since headers (see: 9. Retrieval of media content). If they don't then this could be having a negative impact on your infrastructure already.
2. Obtain a signed certificate to allow HTTPS access to the ZPG Real-time Listings Service (see: 3. Security and authentication).
3. Write code to communicate with the ZPG Real-time Listings Service. This can be facilitated by initially sending the example messages, rather than writing your own.
4. Write code to generate and validate branch/update and listing/delete messages. These have relatively simple message formats which will make it easier for you to interpret schema validation errors.
5. Write code to generate and validate listing/update messages. (You can preview how we will display that message by using the link provided in the url attribute of listing/update's response.)
6. Determine if your system has a suitable field to use with ZPG-Listing-ETag. If there is nothing suitable then implement a hashing system as suggested in 10. Workflow overview.
7. Having uploaded some listings, you can then use listing/list to see what was uploaded and can then implement your synchronisation mechanism, such as the one discussed in 10. Workflow overview.

11.4 Testing

Once you have a working system, it is important to thoroughly test it:

1. Check that the ZPG-Listing-ETag is not using a temporary placeholder value and that it behaves correctly.
2. Send actual listing data. During initial development you may have used our example messages, or written your own, which may not cover all the use-cases present in your actual data. We therefore recommend you send increasingly larger sets of real data to uncover any remaining issues:
   • A small random set of listings.
   • All listings for a branch.
   • All listings for a random set of branches.
   • All listings on your system.
   Check that these display correctly on their preview pages (see the url attribute in the responses for listing/update and listing/list) and that images could be downloaded by us.
3. If you are able to upload all your listings without encountering any errors, then you should maintain those listings for a period of time (we suggest a week or two) just as you would in the live environment. In other words, perform a "dry run":
   • Send listing/update messages for all listings on your system. Find and remove previously sent test listings by utilising listing/list and listing/delete. (These steps are most easily achieved by running your synchronisation process.)
   • Send listing/update and listing/delete messages in real-time as agents edit their data.
   • Regularly check the synchronisation of data between your system and ours via listing/list. We suggest you also check the preview pages for a random sample of listings too in order to ensure that the data is indeed synchronised correctly.

11.5 Migrating to the live environment

It is expected that your system will communicate with the sandbox environment using actual data on a continual basis for at least a week, in order to prove that the combined system is stable, produces no unexpected errors and has no synchronisation issues. When you are happy that this is the case and it is therefore suitable to become the sole means of sending us listing data, please let us know so that you can be granted access to the live environment. The migration procedure is very similar to that used when testing in the sandbox environment:

• Provide us with the details of all your branches. Please contact us if you do not wish to supply them via the branch/update method.

• Send listing/update messages for all listings on your system to the live environment. (This is most easily achieved by running your synchronisation process. Please let us know when this initial upload has been completed.)

• Send listing/update and listing/delete messages in real-time as agents edit their data.

• Periodically check the synchronisation of data between your system and ours via listing/list.

Because the updating process will already have been shown to work correctly over an extended period in the sandbox environment, there should be no difficulties when using the live environment.

If you currently send ZPG a bulk data feed, please continue sending this to us - even after you start sending real-time updates to the live environment. Once your initial upload of data to the live environment has completed, please let us know. We will then change our branch configuration so that we stop using the listing data in your old bulk data feed and start using the data sent via the ZPG Real-time Listings Service instead. When we complete this branch migration process, we will inform you so that you can then terminate your old bulk data feed.

12. Conclusion

We hope that having read this documentation you have decided to integrate the ZPG Real-time Listings Service with your system.

If you have any questions about this documentation, schemas or the service in general, please contact our Support Team.

Thank you for your commitment to improving the quality of service that our mutual clients and users will receive by integrating your system with the ZPG Real-time Listings Service.

A1: Appendix Additional notes on attributes

A1.1 Boolean attributes

The majority of our boolean attributes are optional. You should only include a boolean attribute where you are confident that the value is correct; do not set it to a default value. The reason for this is that you may convey a meaning that you did not intend. For example if you were to default pets_allowed to:

• true: potential tenants will complain if the landlord then rejects their application.
• false: the landlord will receive fewer enquiries even though they might consider tenants with pets.,

Omitting boolean attributes where you do not know the correct value also has the benefit of reducing message sizes and making them easier to read when debugging.

A1.2 Datetime attributes

Dates should be expressed using standard ISO format: YYYY-MM-DD. Where appropriate, a time component may be included by appending the date with a literal T character separator, followed by the time as hh:mm:ss. Note that the time component should use the local time zone of the property. For example:

• 2014-01-31
• 2014-01-31T12:34:56

A1.3 Free-text string attributes

The quality of text supplied in free-text string attributes can vary considerably. In order to improve the user experience on our websites we may modify the display of these strings in order to present a consistent style and aid comprehension (e.g.: capitalisation; removal of HTML tags). If the quality of the text is particularly poor then, in some circumstances, we may choose not to display it at all (e.g. invalid data for the attribute). Care should therefore be taken at the initial data-entry stage to ensure that the correct attribute is being populated and that free-text intended to be read by the public is maintained appropriately (e.g.: spelling; grammar).

Our schemas use a regular expression to ensure that free-text attributes:

• are neither empty nor only consist of whitespace
• have no leading whitespace
• have no trailing whitespace

Note that carriage returns (\r) and newlines (\n) are considered whitespace.

These rules are enforced by the schema via a regular expression, which will be included in any validation errors:

does not match '^\\S(|(.|\\n)*\\S)\\Z'

If you encounter this error you may find it easier to re-read the validation rules above in order to correct the text.

Please refer to 7.2 Errors for more information on error responses.

A1.4. Monetary attributes

All costs/prices should be quoted in the currency specified by pricing:currency_code.

A1.5. display_address

display_address is an optional attribute since it can be constructed from the dedicated address attributes: "street_name, locality, town_or_city". We recommend software providers provide a dedicated field for property_number_or_name, so that unique property address information will not be included in a constructed address. Software providers should encourage their clients to populate address attributes correctly, and to only use the display_address field when address information is conflicting and shows incorrectly on our site.

A1.6. Floor_levels

The layout of floors within a multi-storey building is defined as follows:

• penthouse (top floor)
• ... (increasing integer values)
• 2
• 1 (above street level)
• ground (at street level)
• basement (below street level)

A1.7. property_type

There are a lot of terms for describing house types. The distinctions between some of these types are sometimes unnecessary (for example: apartment vs flat) and broader groupings that just convey the core aspects of the architecture are preferred. Consequently we only support a relatively limited number of property types. When deciding which property type to use, you should choose the most applicable property type that we support. If you believe that there is a significant difference between your property type and those that we support, then send your property type as a readable string. In such cases we will display property type as "Property", but the string you supplied will be considered during our periodic review of property types to ensure that we are supporting the needs of our users adequately. (Please note that our supported property_type enums use all-lowercase characters; alternative case-variants will be displayed as "Property".)

Some property_types in your system may be conveyed by the appropriate use of other attributes. For example:

• a "duplex" is a property_type = "flat" with floors = 2
• a "triplex" is a property_type = "flat" with floors = 3
• a "penthouse" is a property_type = "flat" with floor_levels = ["penthouse"]

When category = "residential", our schema will reject property_type = "studio" if total_bedrooms is also present and has a value greater than 1, as we cannot determine which value is inaccurate; see 7.2.2 JSON schema validation for more information about how we reject ambiguous messages.

Note that the display of the property_type is also dependent on the associated country_code and category of the listing. The schema does not enforce these rules. If an inappropriate property_type is specified for a particular country_code-category combination then it will be displayed as "Property" (residential) or "Commercial Property" (commercial). The list of supported property_types and their validity is as follows:

A2. Appendix Message examples

• Latest version.
• 2023-08-01: v2.1

  • The accessibility feature has shifted from a boolean value to an enum list, now encompassing "lateral_living", "step_free_access", "wheelchair_accessible", and "wet_room".
  • Secondly, the "shared_ownership" object has been expanded to include a new field called "details."
• 2022-06-30: v2.0

  • Changed gb residential sale example to demonstrate new structure for tenure/leasehold/ground_rent, added an example of the use of the new accessibility types, added an example of the new positioning of council tax bands.
  • Changed gb residential rent example to include new NI domestic rates example.
• 2015-05-13 v1.0

  • Promoted version 0.1 to 1.0.
• 2014-11-11: v0.1

  • Initial set of message examples.

A3: Appendix Schema changelog

A4: Appendix Documentation changelog

• latest.

• 2025-01-31: v2.3
• Added support for own_new_rate_reducer, deposit_unlock and part_exchange to buyer_incentives.

• 2024-04-19: v2.3
• Added "construction_materials" as a new optional attribute
• Added "water_supply" as a new optional attribute
• Added "heating_source" as a new optional attribute
• Added "sewerage_supply" as a new optional attribute
• Added "broadband_supply" as a new optional attribute
• Added "electricity_supply" as a new optional attribute
• Extended "parking" with new values
• Added "building_safety_issues" as a new optional attribute
• Added "risks" as a new optional object. contains the sub object "flooding_risks", "mining_risks" and "coastal_erosion_risk"
• Added "known_planning_considerations" as a new optional attribute
• Added "restrictions" and "rights_and_easements" as a new optional attributes
• expanded "accessibility" options. now prevents duplicate values and empty list. description edited to clarify
• add optional "uprn" attribute

• v2.2.

• 2024-03-04: v2.2
• Added "non_traditional" as a possible option for "tenure"
• Removed "percentage_increase" from "ground_rent" requirement.
• Added "date_of_next_review" to "ground_rent". Clarified requirements for each field
• Removed "review_period" attribute from "service_charge", also clarified requirements for each field
• When giving a "tenure" of "share_of_freehold", you can now have an optional lease info component

• 2023-08-01: v2.1
• Change to "Accessibility" feature from boolean to enum of features. Change to the "Shared Ownership" object with addition of "details" field

• 2019-05-20: v1.2
• Added a note explaining that the dss attribute in the tenant eligibility object is now ignored.

• 2017-06-14: v1.2
• Ensured the constraints within the location object in the branch/update schema matched those in the listing/update schema.
• Added support for equity_loan to buyer_incentives.

• 2015-08-20: v1.1
• Added section 3.4 Supported TLS versions. This describes which security protocols we support, and why.

• 2015-08-10: v1.1
• Added support for "per_person_per_week" to pricing:rent_frequency and service_charge:frequency.
• Added support for "non_quoting" to pricing:price_qualifier, and documented its relationship with pricing:price and pricing:price_per_unit_area.

• 2015-07-29: v1.0
• Correcting the documented data type for pricing:price_per_unit_area which uses a price_per_unit_area object.

• 2015-06-17: v1.0
• Clarifying that the ZPG-Listing-ETag should be representative of the state of the associated listing/update message.

• 2015-06-11: v1.0
• Modified detailed_description examples to accurately show how headers with dimensions will be rendered.

• 2015-05-13: v1.0
• Promoted version 0.1 to 1.0.

• 2015-05-07: v0.1
• Added section 11.1 Transitioning from an existing bulk data feed. This explains how data feeds are handled by ZPG and how this facilitates a quick transition to having real-time behaviour for all branches simultaneously.

• 2015-05-08: v0.1
• Described the new constraints for street_name and property_number_or_name in 6.10 location object.

• 2015-05-05: v0.1
• Included sample error output in A1.3 Free-text string attributes.

• 2015-04-15: v0.1
• Explained the availability of schema versions between environments in 4.1 Method endpoints.

• 2015-04-14: v0.1
• Improving description of how the method endpoints are constructed.

• 2015-04-09: v0.1
• Correcting the documented data type for listing/update's available_bedrooms and bathrooms attributes: integer.

• 2015-03-31: v0.1
• Reworked the schema changelog to include which schemas were affected by each change.

• 2015-03-30: v0.1
• Explained how placeholder images are used in 11.2.2 Preview listing web page.

• 2015-03-19: v0.1
• Explained the relationship between available_bedrooms and shared_accommodation in the listing/update method.

• 2015-03-13: v0.1
• Explained the validation of property_type = "studio" in A1.7 property_type.

• 2015-03-10: v0.1
• Summarising the flow of data to the ZPG Real-time Listings Service in 2. Overview.
• Summarising the components of our test environment in 11. Integration.

• 2015-03-03: v0.1
• Clarifying that the role of ZPG-Listing-ETag only relates to checking data synchronicity. It does not affect how we interpret the listing/update message, which will always replace the previous version.

• 2015-02-27: v0.1
• Documenting all the possible attributes that might be returned in an error response.

• 2015-02-19: v0.1
• Added paragraph to 11.5 Migrating to the live environment discussing how the transition from a bulk data feed to the ZPG Real-time Listings Service will be handled.

• 2015-02-12: v0.1
• Added section 2.1 Simple workflow which provides the reader with a better context for understanding the rest of the document.
• Added section 11. Integration which discusses:
• a suggested sequence of steps to build your implementation of the service (this was previously discussed in the Conclusion)
• testing methodology
• migrating to the live environment
• Defining the expected behaviour of ZPG-Listing-ETag more clearly.
• Clarifying that listing/update:property_type should be supplied as an all-lowercase string (A1.7 property_type).

• 2015-01-27: v0.1
• Re-ordered appendices and added names to the menu.
• Added link to example messages from section 5. Methods.

• 2015-01-23: v0.1
• preview_url has been renamed url, and this attribute is now present in the successful responses for listing/list and listing/update in both sandbox and live environments.

• 2015-01-07: v0.1
• Correcting documentation for the listing/update:content attribute to indicate that it is an array of content objects. Also reiterating that the display order is determined by the ordering of those objects within the array.
• Added new attribute sap_rating to the listing/update method.

• 2014-12-12: v0.1
• Adding information about the attribute requirements for the description object. Previously this information was only discussed in 8. Structuring of detailed descriptions.

• 2014-12-10: v0.1
• Added section 9.1 Downloading your content.
• Added note regarding validation rules to the Free-text attributes section.

• 2014-12-02: v0.1
• Added link to JSON schema software implementations in section 4. Messaging.

• 2014-11-21: v0.1
• The facility to preview how a listing will be displayed on our websites is now available. A listing-specific link is provided via the preview_url attribute in the responses for listing/update and listing/list.

• 2014-11-19: v0.1
• Added section 3.2 Example: testing authentication using Curl on Linux.
• Corrected the listing/list response example when branch_reference has no listings.

• 2014-11-11: v0.1
• New appendix section for message examples.

• 2014-11-10: v0.1
• Additional information about responses.
• Added document to the list of valid type values for a content object.

• 2014-09-12: v0.1
• Initial draft.
